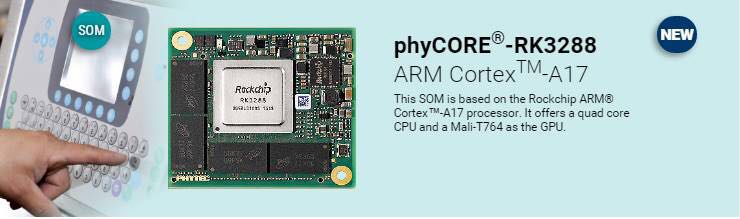

- phyCORE®-乐动网页版登录入口_乐动（中国）3288

The world's first industrial core board based on the Rockchip 乐动网页版登录入口_乐动（中国）3288 platform. It is currently also the world's only model that supports the Linux operating system. It is highly stable and can be used across a broad range of industrial applications.



- Areas of Application

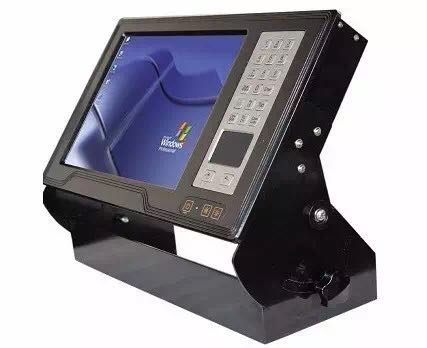

The phyCORE®-乐动网页版登录入口_乐动（中国）3288 is suitable for use in multimedia and low-power, high-demand applications, such as point-of-sale terminals, digital signage, game consoles, auto multimedia, handheld terminals and industrial tablets.

- Four Major Technological Advantages

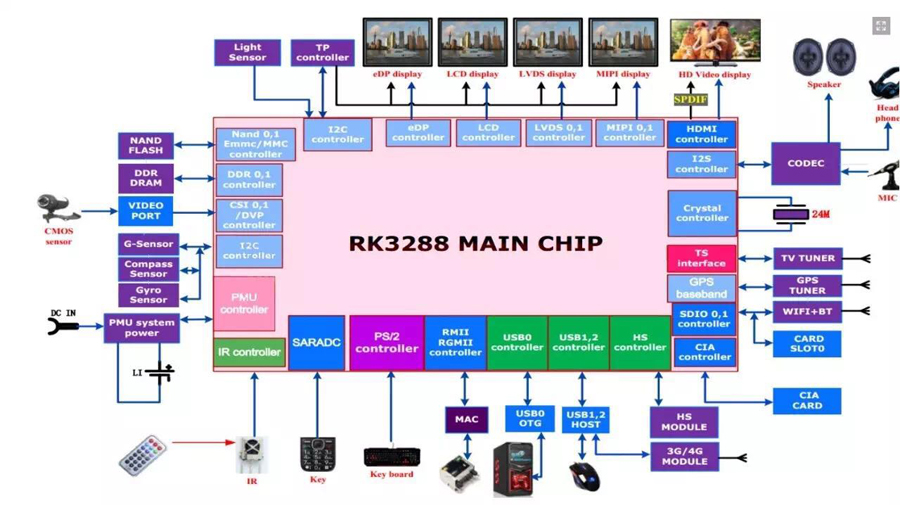

1.      Based on the 乐动网页版登录入口_乐动（中国）3288 with a quad-core Cortex-A17 at 1.8GHz, it provides powerful graphics acceleration and video codec capabilities

§  Quad-coreCortex-A17, frequencies up to 1.8GHz, providing advanced processing capabilities and low-power consumption

§  Integrated Mali-T764 GPU, with 16 shaders, game console-grade 2/3D effects

§  Supports up to 4K H.265 hardware codec VPU and image enhancement processor (IEP), providing the perfect high-definition video experience



2.      Operable under a broad range of industrial-grade temperatures, integrates multi-functional devices, and has a simplified backplane design

§  Operable under a broad range of temperatures from -40°C to +85°C.

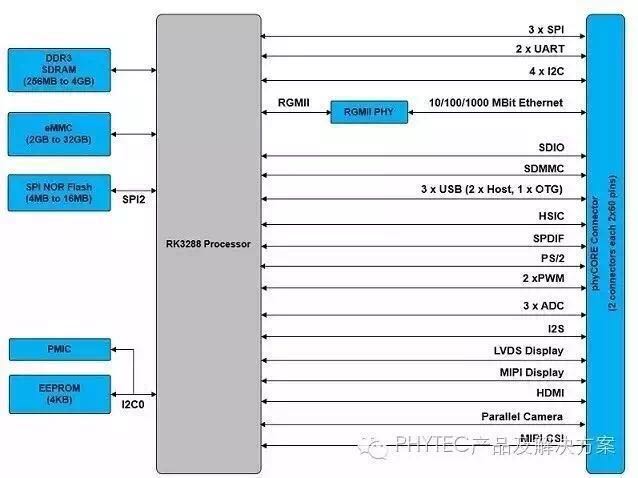

§  Maximum 4GB DDR3, 32GB eMMC, optional EEPROM and NOR flash protection systems

§  Built-in stable PMIC and Ethernet PHY, simplified backplane circuit design

3.      Fully supports signal processors, provides a high-performance interface, and is the smallest encapsulated unit in the industry

§  240pin supports dual Gigabit Ethernet ports, camera, LCD and 4K HDMI2.0 interfaces

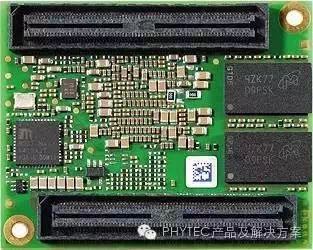

§  Measuring only 45mm * 42mm, the small encapsulated unit provides maximum design flexibility

§  Samtec connectors, with excellent vibration resistance and IP features

4.      Production-grade design resources to enhance development efficiency

§  The world's first industrial core board that supports Linux, providing production-grade support for BSP

§  FCC / CE production-grade reference circuit

§  Local technical support team

§  Developers can develop a diversified portfolio quickly at low cost and low risk

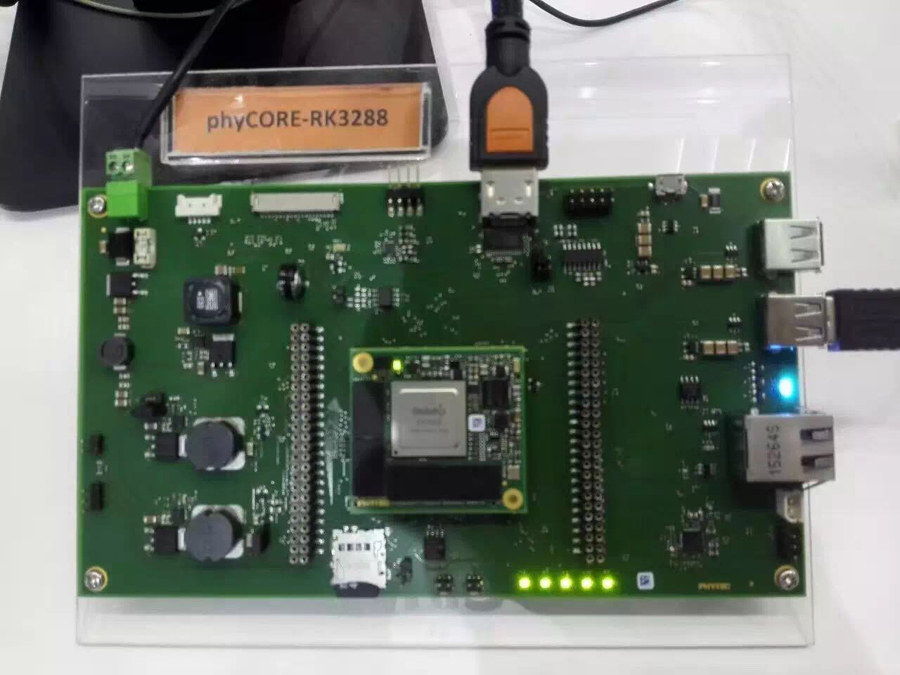

Alpha-stage development kits will be sold in Q3 2016

Production-grade products will be sold in Q4 2016
